John Deere Miscellaneous
Cotton Picker Parts

Shop by Image

John Deere Miscellaneous Parts

Download

We strive to produce the parts which will be the most needed in keeping your harvester operating at its peak performance. As you might expect, there are a number of miscellaneous parts which are found in unique areas of the cotton harvester that do not merit an entire page in our catalog, thus the ‘Miscellaneous Parts’ page. These parts in addition to the others we supply are required to keep your John Deere machinery running efficiently, and if any one of these parts becomes worn or somehow damaged, it’s likely to put a serious halt on your operations. When you do need to order these parts, you should remember to use either the Certi-Pik USA part number or the OEM part number, so you can be sure of receiving the correct part that you need for your machinery.

Learn More

Cotton Harvester Miscellaneous Parts

Any cotton harvester owner, who needs replacement parts for their cotton picker or cotton stripper, should contact us at Certi-Pik USA for immediate service. We always try to have a good supply of high-quality replacement parts on hand for cotton pickers, because we recognize that they are the top performers in the industry right now, and have high demands on their functionality. There are a few parts that are used interchangeably on both Pickers and Strippers, currently due to these unique situations we have some parts available for cotton strippers, so feel free to inquire if you have cotton stripper needs.

We strive to keep up with the newest technology. Virtually all professional cotton harvesters in the business have quickly become acquainted with the capabilities of the CP690 and the CS690 to accomplish non-stop harvesting. High-powered engines on both of these machines provide upward of 500 hp at peak performance, which will reduce your time in the field to a minimum. Contact us when you have any need at all for high-quality replacement parts for your John Deere equipment.

When mistakes are made in ordering parts, there’s always a delay involved, because then the correct part will have to be sent out, and the incorrect part will have to be packaged and returned to the seller. All this takes time, and when you’re trying to get a harvest in before the weather hits, or when you’re trying to quickly get to market, time is something that’s in short supply.

Miscellaneous Parts for Cotton Pickers and Strippers

The most common miscellaneous parts used in the broad range of cotton harvesting equipment include bearings, spindles, studs, caps, transmission case housings, slip clutches, boots, unit drive bearings, basket fingers, finger grates, clamps for the basket finger grates, channel clamps, bottom drum bearings, drum spindles, Baler wrap guides, bushings, and screens. Whenever ordering any of these miscellaneous parts, we will be able to find exactly what you need as long as you can provide us with either our own part number or the OEM part number for reference.

Contact Us

Why Choose Us?

When you’re looking for reliable parts for your cotton harvesting machinery, we realize you have several possible suppliers whom you could contact. However, we honestly feel that we are the most reliable replacements parts company in the country, and reliability is something that should be important to all cotton harvesters. When you have cotton which is ready to be picked in the fields, you can’t afford delays of even a day or two, because weather may interfere and degrade your crop significantly.

If your machine is down because it has a non-operational part, you need to have the right part immediately and it has to be a high-quality part, so it doesn’t immediately break down again. That’s where we come in at Certi-Pik USA.

We have worked with customers all over the globe ever since 1988, and we have provided the best replacement parts for all the top cotton pickers in the industry. Not only do we sell a full range of specialty items, but we can provide the parts you need when you’re undergoing a rebuilding operation on one of your major pieces of equipment. Even if you’re just replacing a few parts, we are still available to help you, and you can be sure you’re getting high-quality parts that won’t fail prematurely under intense operation.

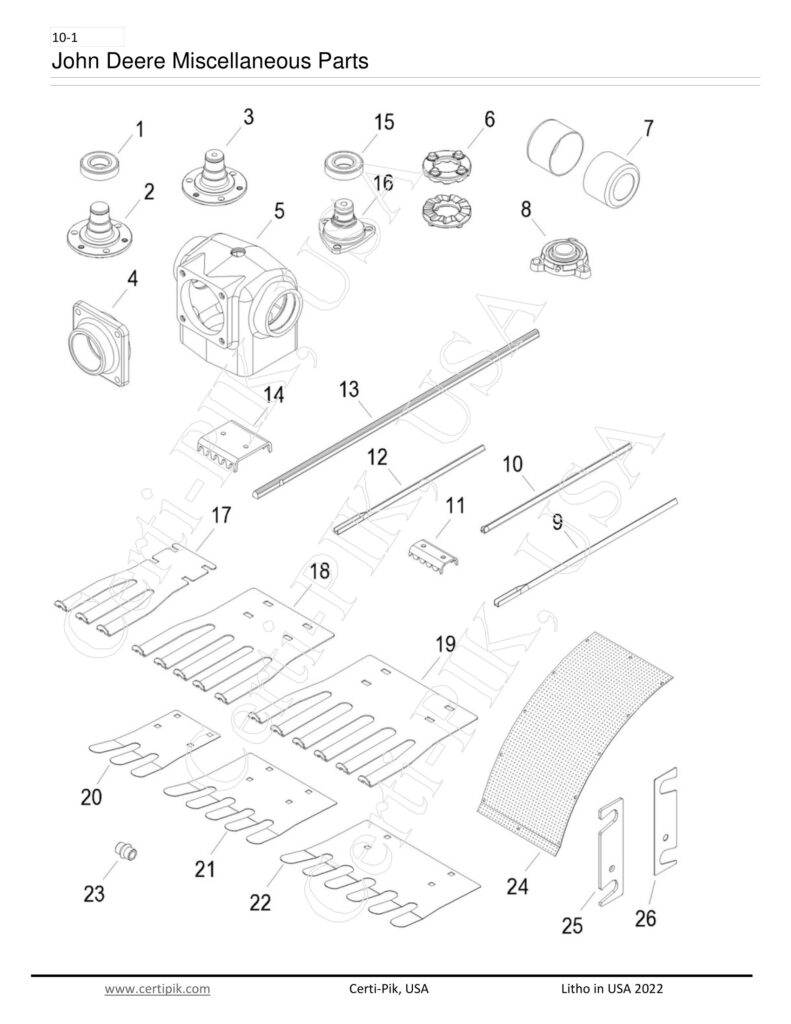

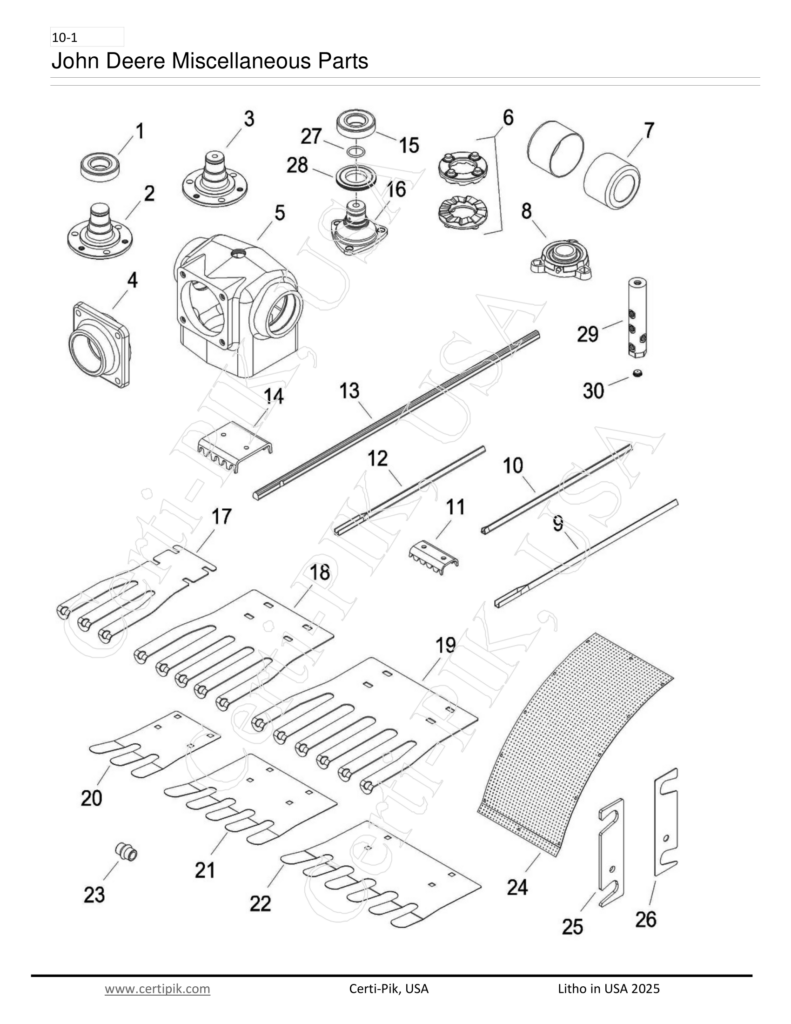

John Deere Miscellaneous Parts

JD Miscellaneous

1 – #11537P

Description: BEARING – DRUM BEARING, 9910-9965 CONV.& IN-LINE
OEM Part: AN111537
Section: JD Miscellaneous
John Deere Miscellaneous Parts
JD Miscellaneous

2 – #93645

Description: SPINDLE – PICKER BAR DRUM, 9900-9965 W/O LUBE
OEM Part: N193645
Section: JD Miscellaneous
John Deere Miscellaneous Parts
JD Miscellaneous

3 – #11582

Description: STUD – PICKER BAR DRUM, 9900-9910 W/ LUBE HOLE
OEM Part: AN111582
Section: JD Miscellaneous
John Deere Miscellaneous Parts
JD Miscellaneous

4 – #18641

Description: CAP – QUILL – GEAR BOX CAP
OEM Part: N118641
Section: JD Miscellaneous
John Deere Miscellaneous Parts
JD Miscellaneous

5.1 – #97405

Description: HOUSING – TRANSMISSION CASE ( 9935, 9960-9965 IN-LINE & CONV. )
OEM Part: N197405
Section: JD Miscellaneous
John Deere Miscellaneous Parts
JD Miscellaneous

5.2 – #90430

Description: HOUSING – TRANSMISSION CASE (9940, 9950)
OEM Part: N190430
Section: JD Miscellaneous
John Deere Miscellaneous Parts
JD Miscellaneous

6 – #99180

Description: JD – SLIP CLUTCH (SOLD IN PAIRS ONLY) LOWER GEAR CASE = ALL 9935, 9960 – CP690: CONV, IN-LINE & PRO UNITS, UNIT DRIVE = 9910 – 9950 , ( 2x 99180 = 1x AN274314 )
OEM Part: N199180
Section: JD Miscellaneous
John Deere Miscellaneous Parts
JD Miscellaneous

7 – #95342

Description: BOOT – 9950 COUPLER COVER, BLACK RUBBER
OEM Part: N195342
Section: JD Miscellaneous
John Deere Miscellaneous Parts
JD Miscellaneous

8 – #10820P

Description: UNIT DRIVE BEARING – (9900-9930)
OEM Part: AN110820
Section: JD Miscellaneous
John Deere Miscellaneous Parts
JD Miscellaneous

9 – #93203

Description: BASKET FINGER – REPLACEMENT ARM ( 16 INCH ) 9960-9976 (112 PCS USED ON ASSEMBLY # AN276456)
OEM Part: 93203
Section: JD Miscellaneous
John Deere Miscellaneous Parts
JD Miscellaneous

10 – #29922

Description: FINGER GRATE – BASKET – 9986 – (ALSO FITS COTTON STRIPPER MODELS: 740, 7440, 7445, 7450, 7455, 7460, CS690)
OEM Part: N129922
Section: JD Miscellaneous
John Deere Miscellaneous Parts
JD Miscellaneous

11 – #29427

Description: CLAMP – BASKET FINGER GRATE – 9986 – (ALSO FITS COTTON STRIPPER MODELS: 7440, 7445, 7450, 7455, 7460, CS690)
OEM Part: N129427
Section: JD Miscellaneous
John Deere Miscellaneous Parts
JD Miscellaneous

12 – #73378

Description: FINGER GRATE – BASKET – 9996
OEM Part: N373378
Section: JD Miscellaneous
John Deere Miscellaneous Parts
JD Miscellaneous

13 – #82159

Description: FINGER GRATE – BASKET ( 7760-CP770 )
OEM Part: N382159
Section: JD Miscellaneous
John Deere Miscellaneous Parts
JD Miscellaneous

14 – #82449

Description: CHANNEL CLAMP – BASKET FINGER GRATE ( 7760-CP770 )
OEM Part: N382449
Section: JD Miscellaneous
John Deere Miscellaneous Parts
JD Miscellaneous

15 – #72787P

Description: PRO – BOTTOM DRUM BEARING – PREMIUM QUALITY (9935, 9970, 9976, 9986, 9996, 7760, CP690)
OEM Part: AN272787
Section: JD Miscellaneous
John Deere Miscellaneous Parts
JD Miscellaneous

16 – #73309

Description: PRO – DRUM SPINDLE – STEEL (9935, 9970, 9976, 9986, 9996, 7760, CP690, CP770)
OEM Part: N273309
Section: JD Miscellaneous
John Deere Miscellaneous Parts
48933 Ink

17 – #48933

Description: JD BALER – WRAP GUIDE – SMALL SIZE – PLASTIC (.093 THICK) 7760-CP690 (2 USED/MACHINE) REPLACES N383021 & KK31825
OEM Part: KK48933
Section: JD Miscellaneous
John Deere Miscellaneous Parts
48934 Ink

18 – #48934

Description: JD BALER – WRAP GUIDE – MEDIUM SIZE – PLASTIC (.093 THICK) 7760-CP690 (2 USED/MACHINE) REPLACES N400244 & KK31824
OEM Part: KK48934
Section: JD Miscellaneous
John Deere Miscellaneous Parts
48932 Ink

19 – #48932

Description: JD BALER – WRAP GUIDE – LARGE SIZE – PLASTIC (.093 THICK) 7760-CP690 (3 USED/MACHINE) REPLACES N383019 & KK31823
OEM Part: KK48932
Section: JD Miscellaneous
John Deere Miscellaneous Parts
JD Miscellaneous

20 – #81641

Description: JD BALER – WRAP GUIDE – EXTENSION – STEEL – 3 FINGERS
OEM Part: N381641
Section: JD Miscellaneous
John Deere Miscellaneous Parts
JD Miscellaneous

21 – #81904

Description: JD BALER – WRAP GUIDE – EXTENSION – STEEL – 5 FINGERS
OEM Part: N381904
Section: JD Miscellaneous
John Deere Miscellaneous Parts
JD Miscellaneous

22 – #81623

Description: JD BALER – WRAP GUIDE – EXTENSION – STEEL – 6 FINGERS
OEM Part: N381623
Section: JD Miscellaneous
John Deere Miscellaneous Parts
JD Miscellaneous

23 – #79871

Description: BUSHING – INSERT , BAR SEAL – PRO DRUM HEAD
OEM Part: N279871
Section: JD Miscellaneous
John Deere Miscellaneous Parts
JD Miscellaneous

24 – #05023

Description: SCREEN – LID ASSY – BALER 7760-CP770
OEM Part: N405023
Section: JD Miscellaneous
John Deere Miscellaneous Parts
31742

25 – #31742

Description: SHIM – ROCKSHAFT – (.187″ THICK) PICKING UNIT LIFT (9976-CP690) REPLACES #N275626
OEM Part: KK31742
Section: JD Miscellaneous
John Deere Miscellaneous Parts
31743

26 – #31743

Description: SHIM – ROCKSHAFT – (.060″ THICK) PICKING UNIT LIFT (9976-CP690) REPLACES #N275627
OEM Part: KK31743
Section: JD Miscellaneous
John Deere Miscellaneous Parts
03171p

27 – #03171P

Description: O-RING – BOTTOM DRUM STUD (PRO)
OEM Part: F3171R
Section: JD Miscellaneous
John Deere Miscellaneous Parts
71820

28 – #71820

Description: MANIOLD – ALUMINUM – LUBE AND WATER SYSTEM – PRO PICKERS (USES #18400 ORIFICE)
OEM Part: N371820
Section: JD Miscellaneous
John Deere Miscellaneous Parts
18400

29 – #18400

Description: ORIFICE – LUBE MANIOLD – BRASS
OEM Part: H118400
Section: JD Miscellaneous
John Deere Miscellaneous Parts
