Case IH Doffer Parts

Shop by Image

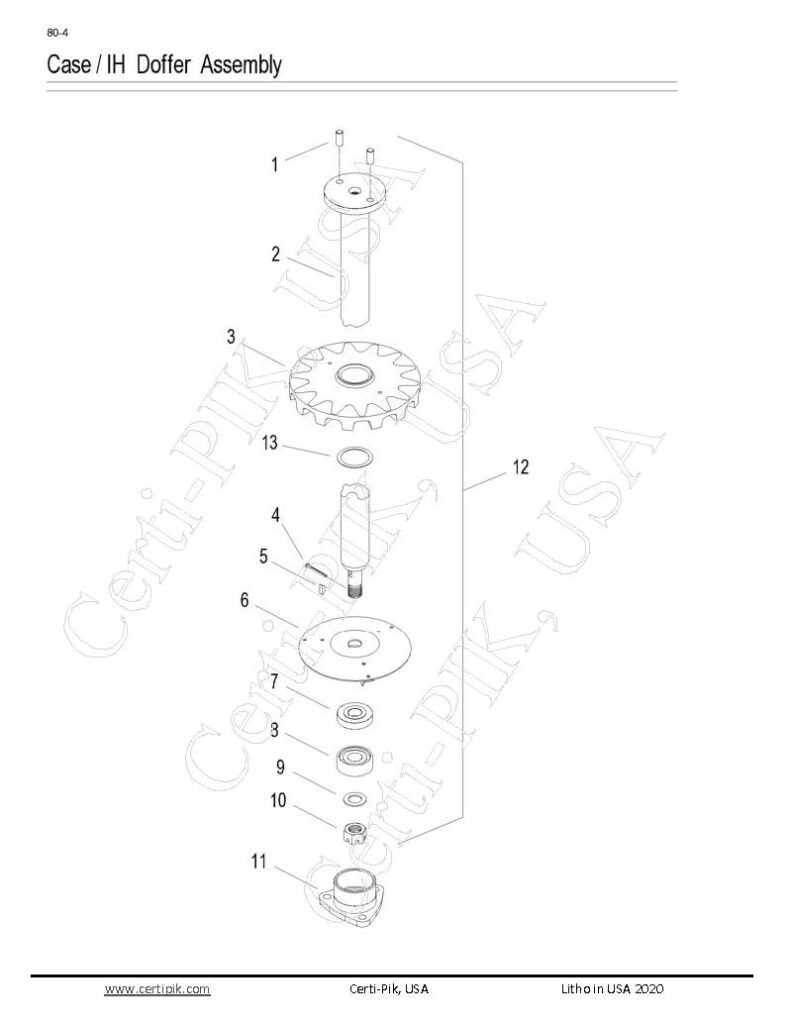

49p1 Page 1

Case / IH Doffer Assembly

Download

When your cotton picker’s Case IH Picking Unit System is working correctly, harvesting cotton is time and cost-efficient. However, the picking system needs to be adequately maintained for the best results when harvesting. Therefore, ensure you do a complete visual inspection of the picking system and replace any Case IH Picking Unit System Parts that are damaged. Weather you run an older cotton harvester or one of the newer Module Express pickers, the Case IH Picking Unit System should be repaired before the season begins. Replacing the damaged parts with mainly aftermarket parts can be beneficial since the cost savings compared to original equipment parts from the manufacturer can be large.

If you’re looking for Case IH Doffer parts
then we have what you need.

The cam track rotates the picker bar around the vertical axis to control the spindle tip speed, which in turn facilitates a higher drum speed. You can contact us using the following additional options:

Shopping Cart: You can place your order through the links on our website and we will confirm your order via email or get in contact with you to discuss any details that may be unclear.
Email: [email protected]
Fax: 1-712-752-8472

For your convenience, you can order your parts any time of the day or night.

Assembly Drawings (With Part Numbers)

Use the table below to quickly access the assembly drawings you may need to identify part numbers. We have a full complement of replacement parts available, including picker bars, cam rollers, bearings, pins, bar journals, thrust washers, retaining rings, spindle assemblies, bottom bar bushings, pivots, and shims.

Cam Tracks Download 18-Spindle Picker Bar Assembly Download Doffer Assembly Download

Ordering the Right Parts is Quick and Easy

It can be incredibly frustrating when opening a parts package, to find that you’ve been sent the incorrect part. Our job is to make it as easy as possible for you to order and receive the exact part or assembly you need to get your machinery fixed or serviced and back out where it belongs, making you money.Please provide us with the following information when placing your order:

  • Certi-Pik part number or OEM part number
  • A description of the item
  • The model number of the machinery you’re fixing

Contact us today for your Case IH Cam Tracks parts.

Comprehensive Inventory in Stock

We carry a comprehensive inventory to ensure that we can supply what you need in the shortest possible time. Our system to ensure that we don’t run out of those important spares and components that you’re going to need has been developed over many years in business. We can ship any components from our warehouse that you may require, at a moment’s notice.

Comprehensive Case IH Doffer Parts Available

We stock a full range of specialty items and sheet metal components for use in rebuilding cotton-harvesting equipment. As we fabricate replacement components for the top pickers in the industry, you have access to everything that you could possibly need to get your machines back in the field. We supply dowel pins, woodruff keys, lower doffer washers, doffer shafts, lower doffer disks, slotted hex nuts, polyurethane doffers, keyed spacers, lower doffer housings, cotter pins, shims, bearings, hex bolts, nuts, etc.

Contact Us Now

If you have the time, browse the links to our very extensive list of parts that appear at the bottom of this page. Alternatively, you’re welcome to give us a call at Certi-Pik USA on our toll-free number, 1-888-CERTIPIK (237-8474), and one of our staff will help you find what you need, right away. If you need to find a specific part and know exactly what you need right now click the link below for the detailed assembly drawing. Each part is labeled, making the selection of the items you need for rebuilding or servicing your picking units, quick and easy.

Call Now

Case / IH Doffer Assembly

Picking Unit System

1 – #0371614P

Description: HARDENED DOWEL PIN – 3/8 X 7/8 – DOFFER (2022-635)
OEM Part: 37-1614
Section: Picking Unit System
Case / IH Doffer Assy
Picking Unit System

2 – #82375C1

Description: DOFFER SHAFT – FITS ALL 2000 SERIES (2022-635)
OEM Part: 1982375C1
Section: Picking Unit System
Case / IH Doffer Assy
Picking Unit System

3 – #4476434UPRM

Description: DOFFER – LARGE URETHANE DOFFER (PREMIUM) 2000 SERIES-635 (REPLACES # 383311A1)
OEM Part: 84476434
Section: Picking Unit System
Case / IH Doffer Assy
Picking Unit System

4 – #0432820P

Description: COTTER PIN – LOWER DOFFER (2022-635)
OEM Part: 432-820
Section: Picking Unit System
Case / IH Doffer Assy
Picking Unit System

5 – #0126113P

Description: KEY – 3/16 X 5/8 WOODRUFF – DOFFER (2022-635)
OEM Part: 126-113
Section: Picking Unit System
Case / IH Doffer Assy
Picking Unit System

6 – #29439C1

Description: DISK – LOWER DOFFER (1822-635)
OEM Part: 1329439C1
Section: Picking Unit System
Case / IH Doffer Assy
Picking Unit System

7 – #07282C1

Description: KEYED SPACER – LOWER DOFFER (1822-635)
OEM Part: 87282C1
Section: Picking Unit System
Case / IH Doffer Assy
Picking Unit System

8 – #7440726P

Description: BEARING – LOWER DOFFER (1822-635) (REPLACES 669807R91)
OEM Part: 87440726
Section: Picking Unit System
Case / IH Doffer Assy
Picking Unit System

9 – #9581039P

Description: WASHER – LOWER DOFFER – 25/32 X 1-1/4 X 1/8″ (2022-635)
OEM Part: 495-81039
Section: Picking Unit System
Case / IH Doffer Assy
0088886p

10 – #0088886P

Description: CASE DOFFER NUT – HEX SLOTTED 3/4 UNF G5 (2022-635)
OEM Part: 88886
Section: Picking Unit System
Case / IH Doffer Assy
Picking Unit System

11 – #69806R2

Description: LOWER DOFFER HOUSING (1822-635)
OEM Part: 669806R2
Section: Picking Unit System
Case / IH Doffer Assy
Picking Unit System

12 – #83429A1

Description: CASE/IH DOFFER ASSEMBLY – INCLUDES ITEMS 1-10 (2022-635)
OEM Part: 383429A1
Section: Picking Unit System
Case / IH Doffer Assy
Picking Unit System

13 – #0331132P

Description: SHIM – DOFFER – .032″ THICK
OEM Part: 0331132P
Section: Picking Unit System
Case / IH Doffer Assy
