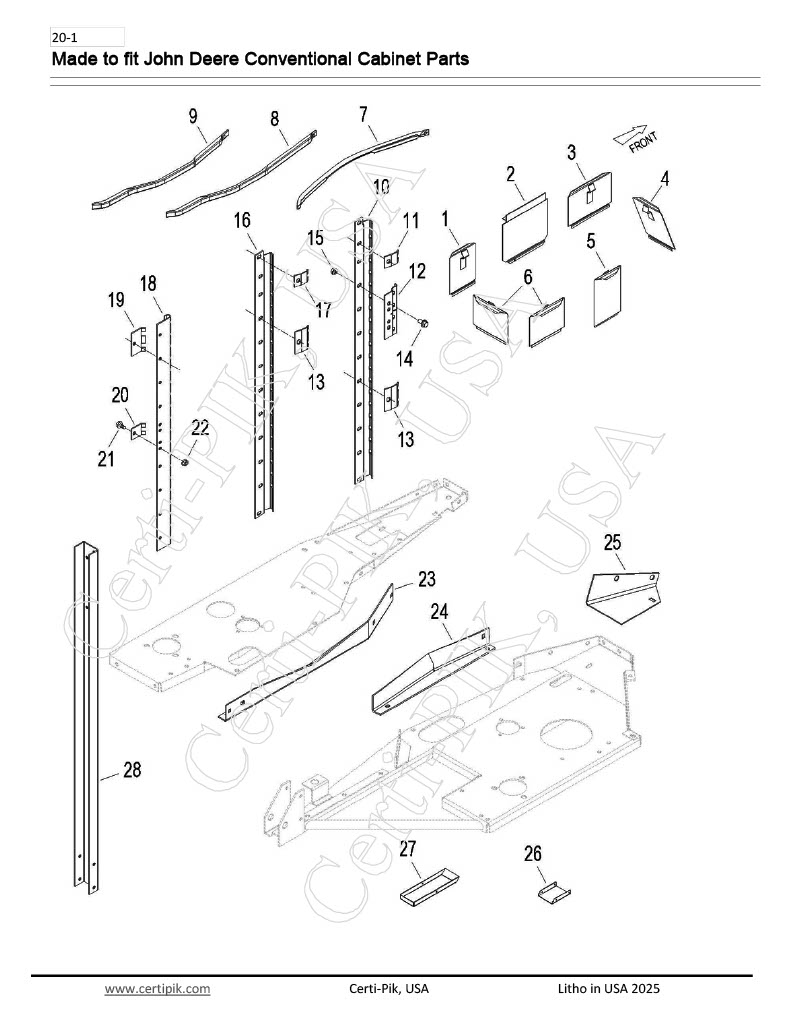

John Deere Conventional Cabinet Parts

Picking Unit Cabinet

1 – #15027

Description: COVER – SIDE INSPECTION
OEM Part: AN115027
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

2 – #19813

Description: COVER – INSPECTION (9 X 9.4) WITHOUT CLIP
OEM Part: N119813
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

3 – #12645

Description: COVER – SIDE INSPECTION (9900-30, 40-65 CONV.)
OEM Part: AN112645
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

4 – #90253

Description: COVER – FRONT INSPECTION (9920,9930,40-60 CONV.)
OEM Part: AN190253
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

5 – #14682

Description: COVER – INSPECTION
OEM Part: AN114682
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

6 – #12644

Description: COVER – SIDE INSPECTION (9900-30, 40-65 CONV.)
OEM Part: AN112644
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
16513p

7 – #16513P

Description: GRID BAR – FRONT (9900-9965)
OEM Part: N116513
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

8 – #90662P

Description: GRID BAR – REAR 9920-9950, CONV. UNITS
OEM Part: N190662
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

9 – #16514P

Description: GRID BAR – REAR ( 9900-9910 ) 12- BAR
OEM Part: N116514
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

10.1 – #19274

Description: POST – R.H. FRONT GRID BAR ( 9920-9965 CONV. )
OEM Part: N119274
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

10.2 – #19275

Description: POST – L.H. FRONT GRID BAR ( 9920-9965 CONV. )
OEM Part: N119275
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

11 – #19277

Description: CLAMP – FRONT SINGLE, GRID BAR (9920-9965)
OEM Part: N119277
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

12 – #93404

Description: CLAMP – FRONT, GRID BAR (9930-9935, 9950-9965)
OEM Part: N193404
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

13 – #19276

Description: CLAMP – FRONT DOUBLE, GRID BAR (9900-9910)
OEM Part: N119276
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

14 – #14822P

Description: BOLT – 3/8 X 3/4″ – SERR HEX FLANGE
OEM Part: N14822
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

15 – #10215P

Description: NUT – 3/8 – SERR HEX FLANGE
OEM Part: N10215
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

16.1 – #15002

Description: POST – R.H. 9900-9910 FRONT GRID BAR POST
OEM Part: N115002
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

16.2 – #15003

Description: POST – L.H. 9900-9910 FRONT GRID BAR POST
OEM Part: N115003
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

17 – #10107

Description: CLAMP – FRONT SINGLE, GRID BAR (9900-9910)
OEM Part: N110107
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

18 – #10123

Description: POST – 9900-9965 CONV. REAR GRID BAR
OEM Part: N110123
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

19 – #10124

Description: CLAMP – REAR DOUBLE (9900-9965 CONV.)
OEM Part: N110124
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

20 – #10125

Description: CLAMP – REAR SINGLE (9900-9965 CONV.)
OEM Part: N110125
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

21 – #10212P

Description: BOLT – 5/16 X 3/4″ – SERR HEX FLANGE
OEM Part: N10212
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

22 – #10213P

Description: NUT – 5/16 – SERR HEX FLANGE
OEM Part: N10213
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

23.1 – #91294R

Description: FRAME – R.H., CONV. UNITS, INSIDE REAR (9900-9950) (ILL.)
OEM Part: N191294
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

23.2 – #91295L

Description: FRAME – L.H., CONV. UNITS, INSIDE REAR (9900-9950)
OEM Part: N191295
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

24.1 – #91664

Description: FRAME – R.H. CONV. BOTTOM STIFFENER, 12-BAR (9920-9950) (ILL.)
OEM Part: N191664
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

24.2 – #91665

Description: FRAME – L.H. CONV. BOTTOM STIFFENER, 12-BAR (9920-9950)
OEM Part: N191665
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

25.1 – #17286R

Description: PLATE – R.H., 16 BAR WEAR PLATE (9900-9910) (ILL.)
OEM Part: N117286
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

25.2 – #17287L

Description: PLATE – L.H., 16 BAR WEAR PLATE (9900-9910)
OEM Part: N117287
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

26 – #90645

Description: SHIELD – LUBE LINE (9920-9930, 9940-9950)
OEM Part: N190645
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

27 – #91600

Description: SHIELD – 12-BAR LUBE LINE (9910-9930, 9940-9950)
OEM Part: N191600
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

28.1 – #16642R

Description: POST – R.H., REAR (HI-DRUM) POST (9900-9930) (ILL.)
OEM Part: N116642
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

28.2 – #16643L

Description: POST – L.H., REAR (HI-DRUM) POST (9900-9930)
OEM Part: N116643
Section: Picking Unit Cabinet
John Deere Conventional, Cabinet Parts
Picking Unit Cabinet

29 – #07786P

Description: BOLT – M10 X 30 – SMOOTH HEX FLANGE
OEM Part: 19M7786
Section: Picking Unit Cabinet
