JOHN DEERE 9930-9935, 9950-CP770 PICKER BAR AND SPINDLE ASSEMBLY
Aftermarket JD harvester parts are vital to the cotton industry at all times of the year, weather rebuilding in the off season or for unforeseen breakdowns during harvest. The John Deere picker bar and spindle assembly are components of the picking unit system for the cotton harvesting machine. The parts are used on models from 9930-9935 through the 9950-CP770’s.There is good news for the farmers when the parts malfunction. Parts are available for purchase individually or in kits however you might need them. Money is saved in time and labor as an individual product can be purchased quickly and of quality craftsmanship and reliable delivery.
Check out our re-designed picker spindle impact sockets, lined with plastic to protect your spindle barbs, made of durable heat treated steel and light weight to reduce operator fatigue.
A checklist for maintenance of the cotton-picking machine is required to keep all parts in check to work at total capacity for an efficient harvest. Having parts available for the picker bar and spindle assembly picker models of 9930-9935 and 9950-CP770 are critical when malfunctions occur. The picker bar and spindle assembly ensures that all the cotton is picked and separated during the harvest. One faulty piece could shut down the entire system, causing a loss of time and money for the farmer. It is essential to understand that parts wear and tear over time during the regular routines of the operation. Having the aftermarket parts available and delivered without delays is vital to the industry.

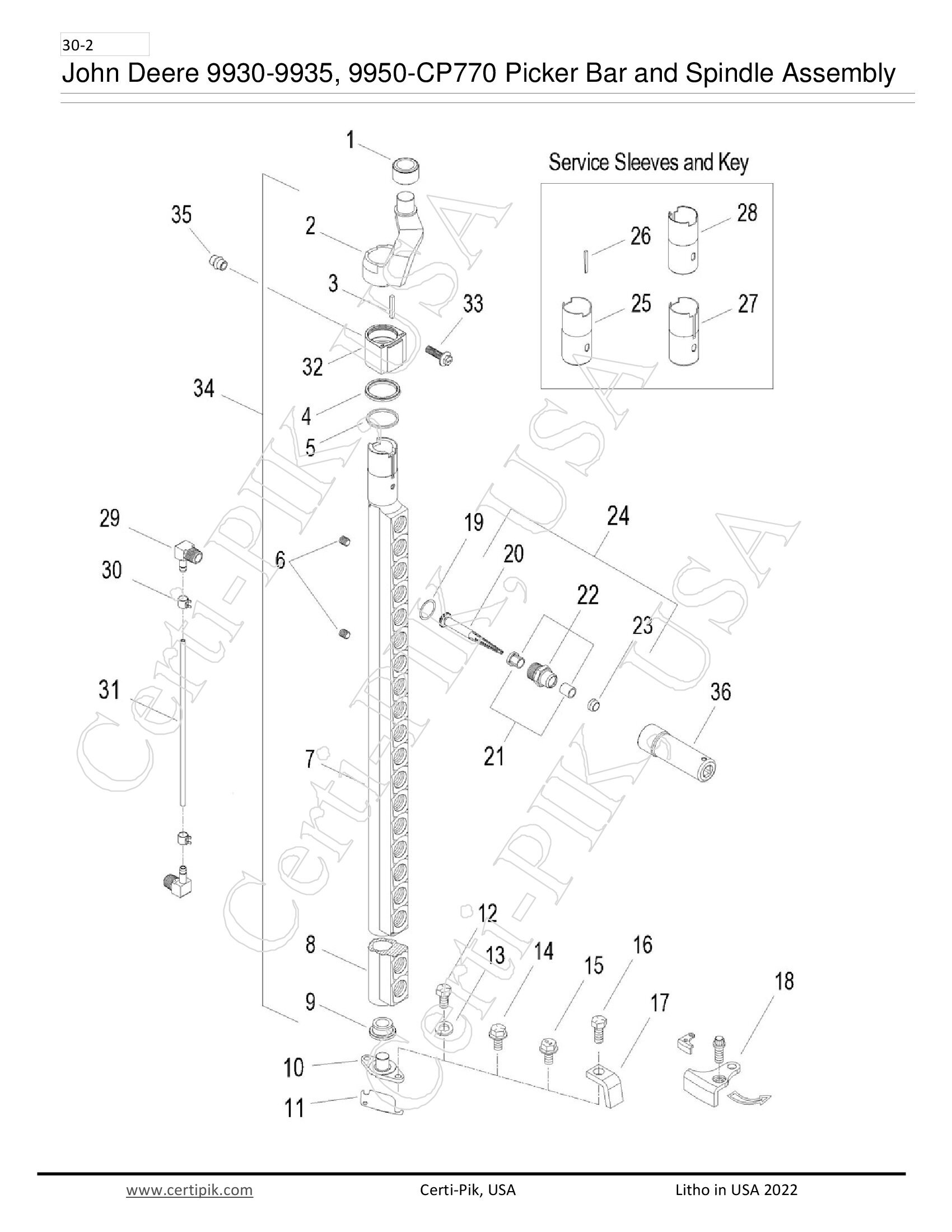

The picture shown here has 36 picker bar and spindle assembly features for the model numbers 9930-9935 and 9950-CP770.
The Parts of the John Deere Picker Bar and Spindle Assembly 9930-9935 and 9950-CP770
- Cam Roller
- R.H. Cam Follower Arm
- L.H. Cam Follower Arm
- Square Key
- Upper Cup Seal (Not Used On Pro Bars)
- Lower Square Seal (Not Used On Pro Bars)
- O-Ring Seal (Two Used on Pro Bars)
- 1/8″ Pipe Plug
- In-Line R.H. 18 Spindle Bar with Pressed-on Sleeve
- Pro-12-18 Spindle Bar with Pressed-on Sleeve
- Pro-16-20 Spindle Bar with Pressed-on Sleeve
- Conv. R.H. 20 Spindle Bar with Pressed-on Sleeve
- Conv. L.H. 20 Spindle Bar with Pressed-on Sleeve
- Bar Bushing
- Bar Stool Pivot
- .003″ Bar Stool Shim
- .005″ Bar Stool Shim
- .010″ Bar Stool Shim
- Dirt Scraper (Can Be Pointed Up or Down)
- In-Line CCW Rotation Dirt Scraper with One Attaching Screw
- Dirt Scraper CW Rotation
- Pro Dirt Scraper on Bar Stool CCW Rotation, 1x (M8 X 20) Attaching Bolt CPE688P
- .005 Spindle Nut Shim
- .010 Spindle Nut Shim
- R.H. Pro-XL Picker Spindle
- Spin. Bush. Flanged
- Spin. Bush. Straight
- R.H. Spindle Nut with Pressed Bushings Assembly
- Spindle Dust Cap
- JD-Pro R.H. Spindle Assembly replacing #AN274216 and AN195082
- Full-Length Service Sleeve Replaces JD N195657 and N279372
- Tapered Service Key
- Keyed Service Sleeve For Pro, In-Line, & Conv
- 90-Degree Lube Line Elbow Union Fitting
- Hose Clamp Fitting Hose OD .280
- Hose Clamp 3/8″ Long Flared Ends Fitting Hose OD .280
- 1000′ Picker Bar Lube Hose
- Random Cut 100′ Picker Bar Lube Hose
- Pro Bar Journal Bearing (C-Pik)
- Pro 20 Spindle Drive Shaft Kit – Unassembled – Picker Bar Shims #02889P Not Included
- Pro 18 Spindle Drive Shaft Kit – Unassembled – Picker Bar Shims #02889P Not Included
- Bushing- Bar Seal Insert- Pro Drum Head
- Picker Spindle 1-1/8″ Impact Socket, 1/2″ Drive, Hardened, Reduced Weight, Lined with Plastic to protect the Barbs
- Picker Spindle 1-1/8″ Impact Socket, 3/8″ Drive, Hardened, Reduced Weight, Lined with Plastic to protect the Barbs
Nuts, Bolts, and Washers for John Deere Picker Bar and Spindle Assembly 9930-9935 and 9950-CP770
- 5/16 x 5/8″ Hex Head GD5 Bolt
- 8mm Lock Washer replacing the 5/16″
- 5/16 x 5/8″ Smooth Hex Flange GD5 Bolt
- M8 x 16 Smooth Hex Flange Bolt
- 5/16 x 3/4″ Hex Head Bolt Used for Dirt Scraper #CPE683
- Pro Bearing Retainer M10 x 35 Smooth Hex Flange Bolt
Ordering from Certi-Pik, USA
Farmers and dealers can access Certi-Pik Customer Service to order aftermarket JD cotton harvester parts for 9930-9935 and 9950-CP770. We strive to keep everything in stock and ready to ship the same day. If the parts are ordered after the noon hour it is more likely that parts will be shipped the next day. Contact Certi-Pik, USA, to order the specific parts you need.
1 – #93500PRM
Description: CAM ROLLER
OEM Part: N193500
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
2.1 – #98724R
Description: ARM – R.H. CAM FOLLOWER ARM (9930,9950-CP690)
OEM Part: N198724
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
2.2 – #98725L
Description: ARM – L.H. CAM FOLLOWER ARM, CONV. UNITS ONLY (ILL.)
OEM Part: N198725
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
3 – #64373
Description: SQUARE KEY
OEM Part: H64373
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
4 – #19589P
Description: SEAL – UPPER CUP (NOT USED ON PRO BARS)
OEM Part: N119589
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
5.1 – #19581P
Description: SEAL – LOWER SQUARE (NOT USED ON PRO BARS)
OEM Part: N119581
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
5.2 – #19854P
Description: O-RING SEAL – (9900-CP770) (2 USED ON PRO BARS)
OEM Part: T19854
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
6 – #00558P
Description: PLUG – 1/8 PIPE PLUG
OEM Part: 15H558
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
7.1 – #93320RPRM
Description: BAR – 9960-65, 18 SPINDLE R.H. WITH PRESSED ON SLEEVE
OEM Part: AN193320
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
7.2 – #74501RPRM
Description: BAR – PRO-12, 18 SPINDLE PRO-12 SERIES WITH SLEEVE
OEM Part: AN274501
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
8.1 – #73434RPRM
Description: BAR – PRO-16, 20 SPINDLE PRO-16 SERIES WITH SLEEVE
OEM Part: AN273434
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
8.2 – #92810RPRM
Description: BAR – CONV. 20 SPINDLE R.H. WITH PRESSED ON SLEEVE
OEM Part: AN192810
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
8.3 – #92809LPRM
Description: BAR – CONV. 20 SPINDLE L.H. WITH PRESSED ON SLEEVE
OEM Part: AN192809
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
9.1 – #74832P
Description: JD BAR BUSHING (USED WITH #12291P PIVOT)
OEM Part: N374832
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
9.2 – #14503
Description: JD LOWER BAR BUSHING (USED WITH #78364P PIVOT)
OEM Part: KK14503
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
10.1 – #12291P
Description: STUD – LOWER BAR STOOL PIVOT (9900-CP770) (USED WITH #74832P BUSHING)
OEM Part: N112291
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
10.2 – #78364P
Description: STUD – LOWER BAR STOOL PIVOT (9900-CP770) (USED WITH #14503 BUSHING) Improved Heavier Bore For Longer Life.
OEM Part: KK78364
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
11.1 – #93694P
Description: SHIM – .003″ BAR STOOL SHIM
OEM Part: N193694
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
11.2 – #90952P
Description: SHIM – .005″ BAR STOOL SHIM
OEM Part: N190952
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
11.3 – #90953P
Description: SHIM – .010″ BAR STOOL SHIM
OEM Part: N190953
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
12 – #01813P
Description: BOLT – 5/16 X 5/8″ HEX HEAD GD5
OEM Part: 19H1813
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
13 – #07065P
Description: WASHER – 8mm LOCK (REPLACES 5/16″)
OEM Part: 12M7065
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
14 – #03695P
Description: BOLT – 5/16 X 5/8″ – SMOOTH HEX FLANGE GD5
OEM Part: 19H3695
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
15 – #07865P
Description: BOLT – M8 X 16 – SMOOTH HEX FLANGE CL10.9 ( MAY BE USED IN PLACE OF # 19M8964 CL8.8 )
OEM Part: 19M7865
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
16 – #01900P
Description: BOLT – 5/16 X 3/4″ HEX HEAD (USED W/ #CPE683 DIRT SCRAPER)
OEM Part: 19H1900
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
17 – #CPE683
Description: DIRT SCRAPER ( CAN BE ATTACHED POINTING UP OR DOWN )
OEM Part: CPE683
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
18.1 – #CPE684CCW
Description: DIRT SCRAPER – CCW ROTATION, 9900-65 CONV, & IN-LINE, (NOT PRO) INCLUDES 1x ATTACHING SCREW # CPE686P (ILL.)
OEM Part: CPE684CCW
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
18.2 – #CPE685CW
Description: DIRT SCRAPER – CW ROTATION, 9900-9965 CONV.
OEM Part: CPE685CW
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
18.3 – #CPE687CCW
Description: PRO – DIRT SCRAPER ON BAR STOOL – CCW ROTATION – 9970-CP770- REQUIRES 1x CPE688P BOLT EACH ATTACHING HARDWARE (M8 X 20)
OEM Part: CPE687CCW
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
19.1 – #02889P
Description: SHIM – .005″ SPINDLE NUT SHIM
OEM Part: L2889N
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
19.2 – #10223P
Description: SHIM – .010″ SPINDLE NUT – (REPLACES CASE/IH #674980R2)
OEM Part: N110223
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
20 – #28390RP
Description: SPINDLE – PRO-XL PICKER SPINDLE RIGHT HAND
OEM Part: KK28390
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly – Replaces #N277078 & N190332R
21.1 – #13307P
Description: BUSHING – SPIN. BUSH. FLANGED
OEM Part: N113307
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
21.2 – #12394P
Description: BUSHING – SPIN. BUSH. STRAIGHT
OEM Part: N112394
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
22 – #11948R
Description: ASSEMBLY – R.H. SPINDLE NUT WITH PRESSED BUSHINGS
OEM Part: AN111948
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
23 – #79986
Description: DUST CAP – SPINDLE (9900-CP770)
OEM Part: N279986
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
24 – #18840
Description: JD – PRO R.H. SPINDLE ASSEMBLY – Replaces #AN274216 & AN195082
OEM Part: AKK18840
Section: Picking Unit Cabinet
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
25 – #76373
Description: SLEEVE – FULL LENGTH SERVICE SLEEVE, REPLACES DEERE N195657 & N279372
OEM Part: N276373
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
26 – #95970
Description: KEY – TAPERED SERVICE
OEM Part: N195970
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
27 – #95657K
Description: SLEEVE – KEYED SERVICE SLEEVE – CONV. & IN-LINE (NOT PRO)
OEM Part: 95657K
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
28 – #76373K
Description: SLEEVE – KEYED SERVICE SLEEVE – PRO ONLY
OEM Part: 76373K
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
29 – #15724P
Description: UNION FITTING – 90 DEG LUBE LINE ELBOW
OEM Part: N115724
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
30.1 – #17044P
Description: HOSE CLAMP – (HOSE OD .280)
OEM Part: N117044
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
30.2 – #17044FP
Description: HOSE CLAMP – 3/8″ LONG FLARED ENDS (HOSE OD .280)
OEM Part: 17044FP
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
31.1 – #74964-01
Description: HOSE – PICKER BAR LUBE (1000 FT)
OEM Part: N274964
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
31.2 – #74964-02
Description: HOSE – PICKER BAR LUBE (100 FT MIN. RANDOM CUT)
OEM Part: N274964
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
32 – #70976
Description: PRO BEARING – BAR JOURNAL ( C-PIK ) (9935-CP770)
OEM Part: N370976
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
33 – #07835P
Description: BOLT – M10 X 35 – SMOOTH HEX FLANGE – PRO BEARING RETAINER
OEM Part: 19M7835
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
34.1 – #76734-K
Description: ** KIT ** 20 SPINDLE (PRO) PICKER BAR ( NOT ASSEMBLED ) – DOES NOT INCLUDE SHIMS #02889P – INCLUDES PARTS IN DRIVE SHAFT KIT #76737-K, & BUSHING #74832P, ARM #98724-R IS TEMPORARILY UNAVAILABLE
OEM Part: AN276734
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
34.2 – #74502-K
Description: ** KIT ** 18 SPINDLE (PRO) PICKER BAR ( NOT ASSEMBLED ) – DOES NOT INCLUDE SHIMS #02889P – INCLUDES PARTS IN DRIVE SHAFT KIT #76743-K, & BUSHING #74832P, ARM #98724-R IS TEMPORARILY UNAVAILABLE
OEM Part: AN274502
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
34.3 – #41952-K
Description: ** KIT ** 20 SPINDLE (CP770 PRO) PICKER BAR ( NOT ASSEMBLED ) – DOES NOT INCLUDE SHIMS #02889P – INCLUDES PARTS IN KIT #45882-K, & BUSHING #14503, ARM #98724-R IS TEMPORARILY UNAVAILABLE
OEM Part: AKK41952
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
35 – #79871
Description: BUSHING – INSERT , BAR SEAL – PRO DRUM HEAD
OEM Part: N279871
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
36.1 – #75063-1/2
Description: PICKER SPINDLE 1-1/8″ IMPACT SOCKET 1/2″ DRIVE, HARDENED, REDUCED WEIGHT, LINED WITH PLASTIC TO PROTECT BARBS
OEM Part: N275063
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
36.2 – #75063-3/8
Description: PICKER SPINDLE 1-1/8″ IMPACT SOCKET 3/8″ DRIVE, HARDENED, REDUCED WEIGHT, LINED WITH PLASTIC TO PROTECT BARBS
OEM Part: N275063
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
37 – #74229
Description: SPRING WASHER – PRO DRUM HEAD BAR JOURNAL RETAINER
OEM Part: N74229
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
38 – #CPIKT54
Description: O-RING/BAR JOURNAL INSTALLATION TOOL – FOR SLIDING PRO BAR JOURNAL WITH O-RINGS SMOOTHLY OVER PICKER BAR SLEEVE – O-RINGS WON’T BIND OR GET DAMAGED WHEN INSTALLING
OEM Part: CPIKT54
Section: Picking Unit System
John Deere 9930-9935, 9950-CP770 Picker Bar and Spindle Assembly
