John Deere Spindle Drive Shaft Parts

Shop by Image

John Deere Spindle Drive Shaft Assembly

Download

If you’re looking for John Deere Spindle Drive Shafts, then read on see what we have available for you. No matter whether you’re a John Deere dealer or farmer, we can supply you with original replacement parts for your cotton harvesting equipment

Learn More

Maintenance and Cleaning

One of the most hardworking parts of your cotton harvester is the picking unit, including the spindle drive shaft and its bearings. Proper setup and inspection ensure that you will get the longest life from additional components such as spindles and doffers. Your cotton picker must be cleaned and maintained according to the operator’s manual. This will ensure that you enjoy reduced downtime, improved productivity, and reduced risk of fire.

Due to the constant contact with fibrous plant material, dirt, and other debris, broken, missing, or worn parts are generally discovered during your regular inspections which help to avoid downtime when you need your equipment operating at full capacity. Our top Drive Gears are machined, closely sized, and heat treated using high quality solid steel that will outperform powdered metal gears, and give you the correct back lash and durability you need.

The spindle drive shaft undergoes its fair share of abuse during harvesting and the operator’s manual covers the regular maintenance items such as daily cleaning and inspection when in harvest configuration, which will potentially save you a lot of money. Our Drive shafts are manufactured from top quality to-size precision ground material that will provide a press fit for our top gears and correct clearances for the spindle drive gears. This sizing will eliminate the problems of roll pins prematurely shearing off causing unnecessary downtime, machine failure, and loss of revenue.

Correct daily adequate greasing as well as checking the clearances will help you maintain smooth operation of the needle bearings, and identify a problem before it can potentially cause a costly failure or in the case of seized bearings or broken roll pins, further damage inside the machinery. Should you require assistance, we are just a phone call away.

Learn More

Comprehensive Inventory in Stock

We carry a comprehensive inventory to ensure that we can supply what you need in the shortest possible time. Our system to ensure that we don’t run out of those important spares and components that you’re going to need has been developed over many years in business. We can ship any components from our warehouse that you may require, at a moment’s notice.

Contact Us Now

If you have the time, browse the links to our very extensive list of parts that appear at the bottom of this page. Alternatively, you’re welcome to give us a call at Certi-Pick USA on our toll-free number, 1-888-CERTIPIK (237-8474), and one of our staff will help you find what you need, right away. If you need to find a specific part and know exactly what you need right now, then click the links in the table below for detailed assembly drawings. Each part is labeled, making the selection of the items you need for rebuilding your picking unit cabinets or to replace any worn-out items, quick and easy.

Picker Bar and Spindle Assembly – 9900-9920, 9940 Picker Bar and Spindle Assembly – 9930-9935, 9950-CP690 Spindle Drive Shaft Assembly
Cam Tracks and Drum Head Upper Doffer Adjustment Housing and Sprocket Assembly Doffer and Lower Housing Assembly
Idler Gear Assembly Upper Drum Drive Assembly

You can contact us using the following additional options:
Email: [email protected]
Fax: 1-712-752-8472
Shopping Cart: You can place your order through the links on our website and we will confirm your order via email or get in contact with you to discuss any details that may be unclear. For your convenience, you can order your parts any time of the day or night. For your convenience, you can order your parts any time of the day or night.

Comprehensive Spindle Drive Shaft Parts Available

We stock a full range of specialty items and sheet metal components for use in rebuilding cotton-harvesting equipment. As we fabricate replacement components for the top pickers in the industry, you have access to everything that you could possibly need to get your machines back in the field. We supply the drive shafts, thrust washer, retaining ring, top gears, needle bearings, spindle gears, shims, roll pins, bearing sleeve, etc.

Contact Us

Ordering the Right Parts is Quick and Easy

It can be incredibly frustrating when opening a parts package, to find that you’ve been sent the incorrect part. Our job is to make it as easy as possible for you to order and receive the exact part or assembly you need to get your machinery fixed or serviced and back out where it belongs, making you money.

Please provide us with the following information when placing your order:

  • Certi-Pik part number or OEM part number
  • A description of the item
  • The model number of the machinery you’re fixing

Contact us today for your John Deere Spindle Drive Shaft parts.

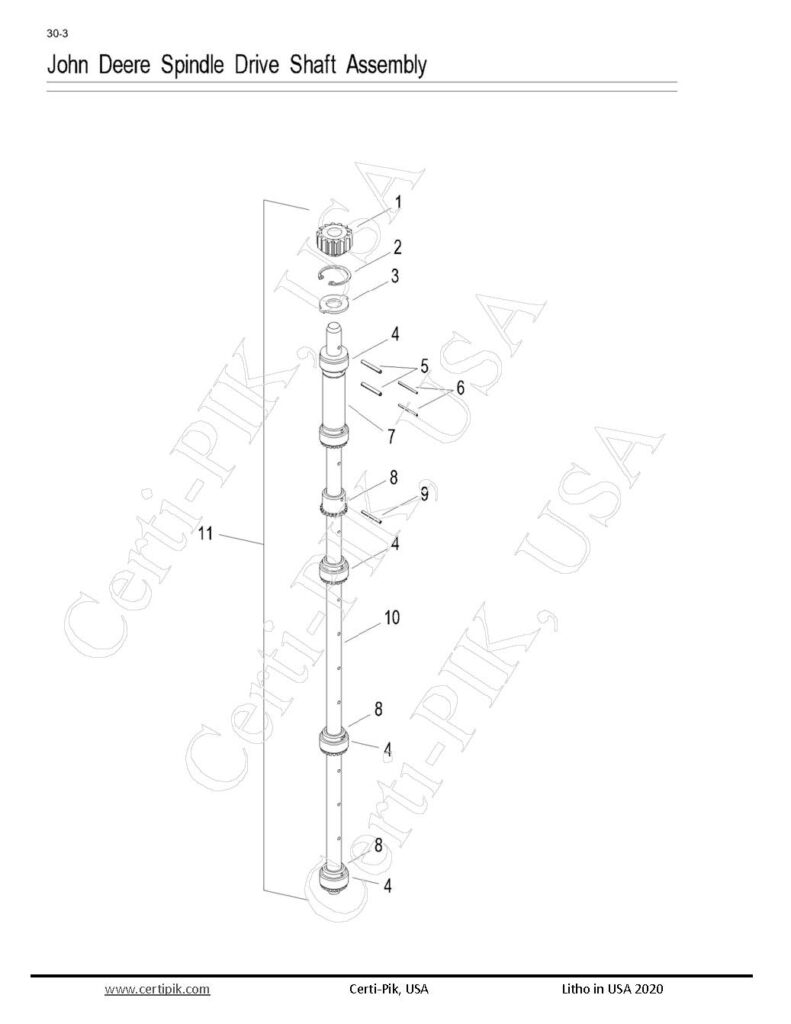

John Deere Spindle Drive Shaft Assembly

Picking Unit System

1 – #18289

Description: DRIVE GEAR (9900-CP770)
OEM Part: N118289
Section: Picking Unit System
John Deere Spindle Drive Shaft Assembly
Picking Unit System

2 – #23694P

Description: SNAP RING (9900-CP770)
OEM Part: T23694
Section: Picking Unit System
John Deere Spindle Drive Shaft Assembly
Picking Unit System

3.1 – #90988P

Description: THRUST WASHER (ILL.)
OEM Part: N190988
Section: Picking Unit System
John Deere Spindle Drive Shaft Assembly
Picking Unit System

3.2 – #78781

Description: PRO THRUST WASHER – WILL FIT ALL MODELS USING #78782 SLEEVE
OEM Part: N278781
Section: Picking Unit System
John Deere Spindle Drive Shaft Assembly
Picking Unit System

4.1 – #08804P

Description: BEARING – 23 NEEDLES
OEM Part: JD8804
Section: Picking Unit System
John Deere Spindle Drive Shaft Assembly
Picking Unit System

4.2 – #08804PFC

Description: NEEDLE BEARING – FULL COMPLIMENT, USED ON BEARING SLEEVE #78782
OEM Part: JD8804B
Section: Picking Unit System
John Deere Spindle Drive Shaft Assembly
Picking Unit System

5 – #00266P

Description: SPRING PIN – 5/32 X 1″ – YELLOW FINISH – USED ON TOP OF SPINDLE DRIVE SHAFT ONLY. IN HOLES IN TOP GEAR AND BEARING SLEEVE.
OEM Part: 34H266
Section: Picking Unit System
John Deere Spindle Drive Shaft Assembly
Picking Unit System

6 – #00235P

Description: SPRING PIN – 3/32 X 1″
OEM Part: 34H235
Section: Picking Unit System
John Deere Spindle Drive Shaft Assembly
Picking Unit System

7 – #78782

Description: BEARING SLEEVE – WILL FIT ALL MODELS USING #78781 THRUST-WASHER
OEM Part: N278782
Section: Picking Unit System
John Deere Spindle Drive Shaft Assembly
Picking Unit System

8.1 – #02456P

Description: SPINDLE GEAR – 1/8″ PIN HOLE
OEM Part: L2456N
Section: Picking Unit System
John Deere Spindle Drive Shaft Assembly
Picking Unit System

8.2 – #90768

Description: SPINDLE GEAR – 5/32″ PIN HOLE (REPLACES #N371626)
OEM Part: KK90768
Section: Picking Unit System
John Deere Spindle Drive Shaft Assembly
Picking Unit System

9.1 – #00045P

Description: SPRING PIN – 1/8 X 1″
OEM Part: 34H45
Section: Picking Unit System
John Deere Spindle Drive Shaft Assembly
Picking Unit System

9.2 – #00060P

Description: SPRING PIN – 5/32 X 1″ – BLACK FINISH – USED ON SPINDLE DRIVE SHAFT.
OEM Part: 34H60
Section: Picking Unit System
John Deere Spindle Drive Shaft Assembly
Picking Unit System

10.1 – #14199

Description: DRIVE SHAFT – 14 SPINDLE – 1/8″ PIN HOLES IN GEARS
OEM Part: N114199
Section: Picking Unit System
John Deere Spindle Drive Shaft Assembly
Picking Unit System

10.2 – #78037

Description: DRIVE SHAFT – 18 SPINDLE – 1/8″ PIN HOLES IN GEARS (9900-9976)
OEM Part: N278037
Section: Picking Unit System
John Deere Spindle Drive Shaft Assembly
Picking Unit System

10.3 – #75212

Description: DRIVE SHAFT – 20 SPINDLE – 1/8″ PIN HOLES IN GEARS (9900-9976)
OEM Part: N275212
Section: Picking Unit System
John Deere Spindle Drive Shaft Assembly
Picking Unit System

10.4 – #71720

Description: DRIVE SHAFT – PRO 12 – 18 SPINDLE – 5/32″ PIN HOLES IN GEAR (9970-CP690)
OEM Part: N371720
Section: Picking Unit System
John Deere Spindle Drive Shaft Assembly
Picking Unit System

10.5 – #71572

Description: DRIVE SHAFT – PRO 16 – 20 SPINDLE – 5/32″ PIN HOLES IN GEAR (9976-CP770)
OEM Part: N371572
Section: Picking Unit System
John Deere Spindle Drive Shaft Assembly
Picking Unit System

11.1 – #76737-K

Description: ** KIT ** 20 SPINDLE (PRO) DRIVE SHAFT ( NOT ASSEMBLED ) – 5/32 GEAR & SHAFT HOLES
OEM Part: AN276737
Section: Picking Unit System
John Deere Spindle Drive Shaft Assembly
Picking Unit System

11.2 – #76743-K

Description: ** KIT ** 18 SPINDLE (PRO) DRIVE SHAFT ( NOT ASSEMBLED ) – 5/32 GEAR & SHAFT HOLES
OEM Part: AN276743
Section: Picking Unit System
John Deere Spindle Drive Shaft Assembly


Picking Unit System

1.1 – #93262

Description: DOFFER SHAFT – 14 SPINDLE
OEM Part: AN193262
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

1.2 – #93323

Description: DOFFER SHAFT – 18 SPINDLE
OEM Part: AN193323
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

1.3 – #93263

Description: USE #73701, OR #16193 – DOFFER SHAFT, 20 SPINDLE
OEM Part: AN193263
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

1.4 – #74506

Description: DOFFER SHAFT – PRO-12 18 SPINDLE (9970-CP690 P12)
OEM Part: AN274506
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

1.5 – #73701

Description: DOFFER SHAFT – PRO-16 20 SPINDLE (9976-CP690 P12)
OEM Part: AN273701
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

2 – #72152PRM

Description: DOFFER – PREMIUM URETHANE (9900-CP690 P12)
OEM Part: AN272152
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

3 – #75381HD

Description: DOFFER SPACER – LONG – SPLINED CENTER – HEAVY DUTY – (REPLACES N275381 & N197107) ( FITS ALL MODELS 9900-CP690 P12)
OEM Part: N275381
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

4.1 – #03197P

Description: SHIM – DOFFER, .010″ THICK – (9900-CP690 P12)
OEM Part: L3197N
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

4.2 – #03197P-20

Description: SHIM – DOFFER – .020″ THICK
OEM Part: 03197P-20
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

5 – #01633P

Description: WASHER – 1-17/64 X 1-7/8 X .048″ (9930-9996), NOT 9960-9965 IN-LINE
OEM Part: 24H1633
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

6.1 – #80569

Description: SHORT DOFFER SPACER – SPLINED (REPLACES 06133P & 98746)
OEM Part: N380569
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

6.2 – #98746

Description: SPACER – SHORT SPACER (9900-9996 W/ #01633P) : (#01633P NOT USED ON 9960 & 9965 IN-LINE)
OEM Part: N198746
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

7.1 – #91302

Description: DOFFER CAP – (9900-9965 CONV.& IN-ILNE)
OEM Part: N191302
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

7.2 – #75471

Description: DOFFER CAP – PRO (9970-CP770)
OEM Part: N275471
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

8.1 – #90913

Description: SPACER – LOWER DOFFER BEARING SPACER, (9910-9965 CONV.)
OEM Part: N190913
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

8.2 – #96834

Description: SPACER – LOWER DOFFER BEARING SPACER, (9935-9965 IN-LINE)
OEM Part: N196834
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

8.3 – #10874

Description: SPACER – LOWER DOFFER BEARING SPACER, (PRO 9935-CP770) – REPLACES # N275350, & N371318
OEM Part: N410874
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

9.1 – #10123P

Description: BALL BEARING – LOWER DOFFER ( 9900-9965 )
OEM Part: JD10123
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

9.2 – #75022P

Description: BEARING – LOWER DOFFER -PRO- (9935, 9970-CP770)
OEM Part: AN275022
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
82619

10.1 – #82619

Description: NUT – 1-1/8 – NYLON LOCK (9900-9965)
OEM Part: H82619
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

10.2 – #75038P

Description: PRO DOFFER NUT, M30 NYLON LOCK NUT (9935-CP690 P12)
OEM Part: N275038
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

11 – #73953

Description: LOWER DOFFER HOUSING (9900-CP770) INCLUDES 1x 1/8″ LUBE FITTING #07759P
OEM Part: AN273953
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

12 – #75931P

Description: SHIM – HOUSING – REPLACES PART # N34164 & N275931
OEM Part: N275931
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

13.1 – #93795

Description: PLATE – DOFFER BASE PLATE (9900-9965) (USE 3x #10124P & 3x #10215P) (ILL.)
OEM Part: N193795
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

13.2 – #76703

Description: DOFFER BASE PLATE – PRO (9935, 9970-CP770)
OEM Part: N276703
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

14 – #72482

Description: VINE CUTTER – 2 PER DOFFER SHAFT (9900-CP690) (SOLD IN PAIRS ONLY) INCLUDES ATTACHING HARDWARE: 2x 14820PV – 1/4 X 3/4″ HEX BOLT & 2x 10217PV – 1/4″ LOCK NUT
OEM Part: N272482
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

15 – #10217PV

Description: NUT – 1/4 – NYLON LOCK (2 RQD.)
OEM Part: N10217
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

16 – #14820PV

Description: BOLT – 1/4 X 3/4″ HEX BOLT (2 RQD.)
OEM Part: N14820
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

17.1 – #72224-IL

Description: COMPLETE 18 SPINDLE URETHANE DOFFER ASSEMBLY – (MODELS 9935, 9960 & 9965 IN-LINE ONLY) – (INCLUDES ITEMS 1-10, NOT 5) *GROUND AND READY TO INSTALL *
OEM Part: AN272224
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

17.2 – #72225

Description: (REPACED BY PART #73445, OR #17562) – COMPLETE 20 SPINDLE URETHANE DOFFER ASSEMBLY
OEM Part: AN272225
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

17.3 – #74508

Description: COMPLETE 18 SPINDLE URETHANE DOFFER ASSEMBLY – (PRO 9970-CP690) – (INCLUDES ITEMS 1-10) * GROUND AND READY TO INSTALL *
OEM Part: AN274508
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

17.4 – #73445

Description: COMPLETE 20 SPINDLE URETHANE DOFFER ASSEMBLY – (PRO 9976-7760) – (INCLUDES ITEMS 1-10) * GROUND AND READY TO INSTALL * FITS ALL 20 SPINDLE CONV. AND PRO MACHINES (NOT CP690 – W/ FINE ADJUSTMENT)
OEM Part: AN273445
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

18 – #10545P

Description: BOLT – M10 X 280 HEX HEAD – CP690, CP770 PRO-16
OEM Part: 19M10545
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

19 – #16193

Description: DOFFER SHAFT – CP690, CP770 PRO16 – (LARGE DIA HOLLOW SHAFT) 20S
OEM Part: AKK16193
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

20 – #06038PRM

Description: DOFFER – PREMIUM URETHANE (PRO-16 LARGE HOLE – HIGH SPEED)
OEM Part: AN406038
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

21 – #00789P

Description: DOFFER SHIM .010″ – CP690,CP770 PRO-16 – LARGE HOLE
OEM Part: N400789
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

22 – #15280

Description: DOFFER SPACER – LONG – CP690, CP770 PRO-16 – LARGE HOLE
OEM Part: KK15280
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

23 – #15281

Description: DOFFER SPACER – SHORT – CP690, CP770 PRO-16 – LARGE HOLE
OEM Part: KK15281
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

24 – #34803

Description: WASHER – CP690, CP770 PRO-16
OEM Part: N134803
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

25 – #07828P

Description: BOLT – M16 X 100 – SMOOTH HEX FLANGE – CP690, CP770 PRO-16
OEM Part: 19M7828
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
97039p

26 – #17562

Description: DOFFER ASSEMBLY – CP690, CP770 PRO-16 BALER – 20S (HIGH SPEED) – FITS ALL 20 SPINDLE CONVENTIONAL AND PRO MACHINES
OEM Part: AKK17562
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

27 – #75625P

Description: BOLT – M10 X 25 – SERR HEX FLANGE
OEM Part: N275625P
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit System

28 – #63526P

Description: NUT – M10 – SERR HEX FLANGE
OEM Part: E63526
Section: Picking Unit System
John Deere Doffer and Lower Housing Assembly
Picking Unit Cabinet

29 – #07786P

Description: BOLT – M10 X 30 – SMOOTH HEX FLANGE
OEM Part: 19M7786
Section: Picking Unit Cabinet
John Deere Doffer and Lower Housing Assembly
Picking Unit Cabinet

14 – #07786P

Description:BOLT – M10 X 30 – SMOOTH HEX FLANGE
OEM Part:19M7786
Section: Picking Unit System
John Deere Upper Doffer Adjustment Housing and Sprockets Assembly
