JOHN DEERE 9900-9920, 9940 PICKER BAR AND SPINDLE ASSEMBLY
The John Deere picker bar and spindle assembly is part of the picking unit system on a cotton-picking machine. It is an assembly of aftermarket harvester parts that are vital to the cotton harvesting season. When the component fails, the farmer only needs to purchase the broken piece, not the entire component. This can save the farmers money in both parts and labor.
All parts of the cotton-picking machine require maintenance and a checklist to ensure everything works correctly before, during, and after the harvest season. The picker bar and spindle assembly are vital to the picking unit system to keep the harvest flowing. Every piece of the picker bar and spindle assembly must ensure the cotton is picked up and separated accordingly. If the unit or one small item within the system fails, the harvesting process ends abruptly until the part is replaced. Maintenance and regular checklists help to prevent these unfortunate occurrences, but parts still wear and tear.Learn More

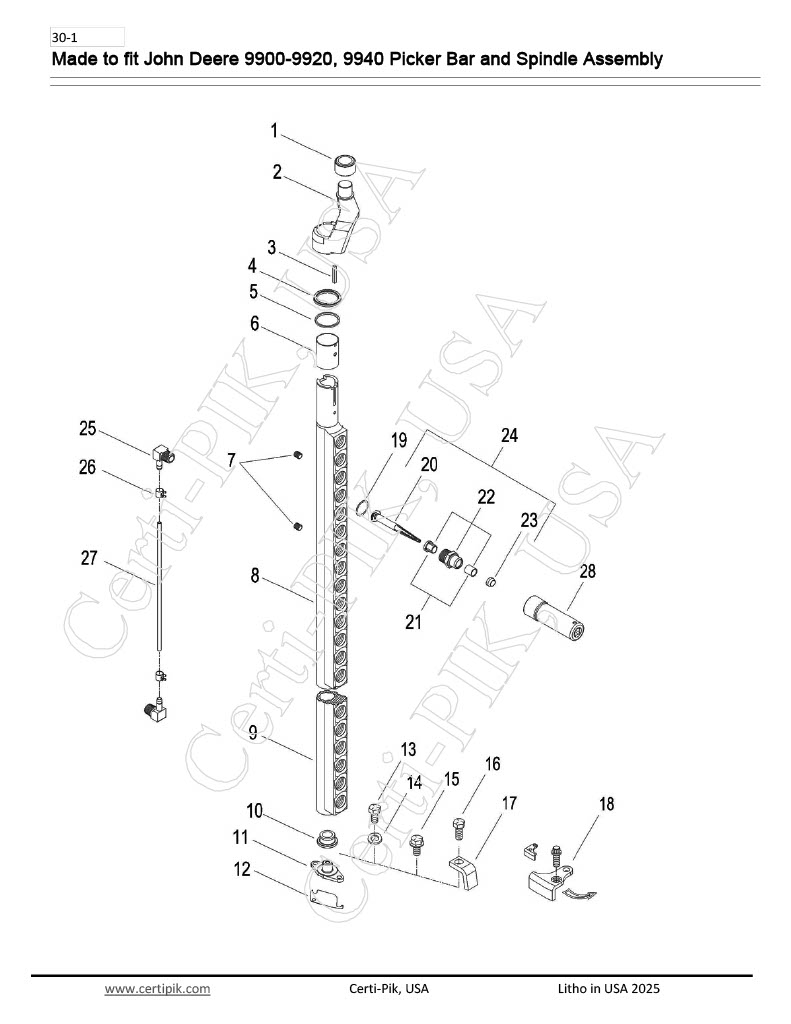

The diagram shown here has 28 components for the picker bar and spindle assembly.
The Parts of the John Deere Picker Bar and Spindle Assembly
- Cam Roller
- R.H. Cam Follower Arm
- L.H. Cam Follower Arm
- Square Key
- Upper Cup Seal (Not Meant for Pro Bars)
- Lower Square Seal (Not Meant for Pro Bars)
- O-Ring Seal (Two Used on Pro Bars)
- Short Split Service Sleeve
- Short Un-split Service Sleeve
- 1/8″ Pipe Plug
- 14 Spindle R.H. Bar
- 14 Spindle L.H. Bar
- 20 Spindle R.H. Bar
- 20 Spindle L.H. Bar
- JD Bar Bushing
- Bar Stool Pivot
- .003″ Bar Stool Shim
- .005″ Bar Stool Shim
- .010″ Bar Stool Shim
- Dirt Scraper (Attached Up or Down)
- In-Line CCW Rotation Dirt Scraper with One Attaching Screw
- Dirt Scraper CW Rotation
- .005 Spindle Nut Shim
- .010 Spindle Nut (Replacing Case IH #674980R2)
- R.H. Pro-XL Picker Spindle
- Spin. Bush. Flanged Bushing
- Spin. Bush. Straight Bushing
- R.H. Spindle Nut with Pressed Bushings Assembly
- Spindle Dust Cap
- JD-Pro R.H. Spindle Assembly replacing #AN274216 and AN195082
- 90-Degree Lube Line Elbow Union Fitting
- Hose Clamp Fitting Hose OD .280
- Hose Clamp 3/8″ Long Flared Ends Fitting Hose OD .280
- 1000′ Picker Bar Lube Hose
- Random Cut 100′ Picker Bar Lube Hose
- Picker Spindle Kit with 1/8″ Impact Socket, 1/2″ Drive Hardened Reduced Weight Lined with Plastic to protect the Barbs
- Picker Spindle Kit with 1/8″ Impact Socket, 3/8″ Drive Hardened Reduced Weight Lined with Plastic to protect the Barbs
Nuts, Bolts, and Washers for John Deere Picker Bar and Spindle Assembly
- 5/16 x 5/8″ Hex Head GD5 Bolt
- 8mm Lock Washer replacing the 5/16″
- 5/16 x 5/8″ Smooth Hex Flange GD5 Bolt
- 5/16 x 3/4″ Hex Head Bolt Used for Dirt Scraper #CPE683
Shipping Made Easy with Our Stocked Shelves
One worn-out small piece can shut down or delay a cotton-picking harvest. Farmers and dealers must receive shipments without delays. Every day, money is lost when the harvesting equipment stalls out.
Farmers will shop through the local dealers, or the option is there to get them straight from the warehouse. All it takes is one to two days for the farmer to get the part, then however long it takes for the mechanic to install the pieces that require replacing. Without delay, the farmer can return to the fields and continue working on the cotton harvest. Having the aftermarket harvester parts removes any red tape the OEM has on the parts. This means the parts are less expensive, at an excellent quality, and lessens the ordering process. Some orders may take several days to weeks if they are not in stock. With Certi-Pik USA, in most cases, parts can go out within 1 to 2 days.
Ordering from Certi-Pik USA
The farmer can get the correct aftermarket harvester parts numbers and order online, directly through our customer service, or from their dealer by looking at the diagram and the parts on the John Deere picker bar and spindle assembly page. Contact Certi-Pik USA to order the specific pieces required.
1 – #93500PRM
Description: CAM ROLLER
OEM Part: N193500
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
2.1 – #14682R
Description: ARM – R.H. CAM FOLLOWER
OEM Part: N114682
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
2.2 – #14683L
Description: ARM – L.H. CAM FOLLOWER (ILL.)
OEM Part: N114683
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
3 – #64373
Description: SQUARE KEY
OEM Part: H64373
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
4 – #19589P
Description: SEAL – UPPER CUP (NOT USED ON PRO BARS)
OEM Part: N119589
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
5.1 – #19581P
Description: SEAL – LOWER SQUARE (NOT USED ON PRO BARS)
OEM Part: N119581
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
5.2 – #19854P
Description: O-RING SEAL – (9900-CP690) (2 USED ON PRO BARS)
OEM Part: T19854
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
6.1 – #17859P
Description: SLEEVE – SHORT SPLIT SERVICE SLEEVE
OEM Part: N117859
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
6.2 – #17000
Description: SLEEVE – SHORT UN-SPLIT SERVICE SLEEVE
OEM Part: 17000
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
7 – #00558P
Description: PLUG – 1/8 PIPE PLUG
OEM Part: 15H558
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
8.1 – #90786R
Description: BAR – 14 SPINDLE R.H.
OEM Part: AN190786
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
8.2 – #90787L
Description: BAR – 14 SPINDLE L.H.
OEM Part: AN190787
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
9.1 – #92756RPRM
Description: BAR – CONV. 20 SPINDLE R.H.
OEM Part: AN192756
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
9.2 – #92755LPRM
Description: BAR – CONV. 20 SPINDLE L.H.
OEM Part: AN192755
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
10 – #74832P
Description: JD BAR BUSHING (USED WITH #12291P PIVOT)
OEM Part: N374832
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
11 – #12291P
Description: STUD – LOWER BAR STOOL PIVOT (9900-CP690) (USED WITH #74832P BUSHING)
OEM Part: N112291
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
12.1 – #93694P
Description: SHIM – .003″ BAR STOOL SHIM
OEM Part: N193694
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
12.2 – #90952P
Description: SHIM – .005″ BAR STOOL SHIM
OEM Part: N190952
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
12.3 – #90953P
Description: SHIM – .010″ BAR STOOL SHIM
OEM Part: N190953
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
13 – #01813P
Description: BOLT – 5/16 X 5/8″ HEX HEAD GD5
OEM Part: 19H1813
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
14 – #07065P
Description: WASHER – 8mm LOCK (REPLACES 5/16″)
OEM Part: 12M7065
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
15 – #03695P
Description: BOLT – 5/16 X 5/8″ – SMOOTH HEX FLANGE GD5
OEM Part: 19H3695
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
16 – #01900P
Description: BOLT – 5/16 X 3/4″ HEX HEAD (USED W/ #CPE683 DIRT SCRAPER)
OEM Part: 19H1900
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
17 – #CPE683
Description: DIRT SCRAPER ( CAN BE ATTACHED POINTING UP OR DOWN )
OEM Part: CPE683
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
18.1 – #CPE684CCW
Description: DIRT SCRAPER – CCW ROTATION, 9900-65 CONV, & IN-LINE, (NOT PRO), INCLUDES 1x ATTACHING SCREW # CPE686P (ILL.)
OEM Part: CPE684CCW
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
18.2 – #CPE685CW
Description: DIRT SCRAPER – CW ROTATION, 9900-9965 CONV.
OEM Part: CPE685CW
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
19.1 – #02889P
Description: SHIM – .005″ SPINDLE NUT SHIM
OEM Part: L2889N
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
19.2 – #10223P
Description: SHIM – .010″ SPINDLE NUT – (REPLACES CASE/IH #674980R2)
OEM Part: N110223
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
20 – #28390RP
Description: SPINDLE – PRO-XL PICKER SPINDLE RIGHT HAND
OEM Part: KK28390
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly – Replaces #N277078 & N190332R
21.1 – #13307P
Description: BUSHING – SPIN. BUSH. FLANGED
OEM Part: N113307
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
21.2 – #12394P
Description: BUSHING – SPIN. BUSH. STRAIGHT
OEM Part: N112394
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
22 – #11948R
Description: ASSEMBLY – R.H. SPINDLE NUT WITH PRESSED BUSHINGS
OEM Part: AN111948
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
23 – #79986
Description: DUST CAP – SPINDLE (9900-CP690)
OEM Part: N279986
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
24 – #18840
Description: JD – PRO R.H. SPINDLE ASSEMBLY – Replaces #AN274216 & AN195082
OEM Part: AKK18840
Section: Picking Unit Cabinet
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
25 – #15724P
Description: UNION FITTING – 90 DEG LUBE LINE ELBOW
OEM Part: N115724
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
26.1 – #17044P
Description: HOSE CLAMP – (HOSE OD .280)
OEM Part: N117044
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
26.2 – #17044FP
Description: HOSE CLAMP – 3/8″ LONG FLARED ENDS (HOSE OD .280)
OEM Part: 17044FP
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
27.1 – #74964-01
Description: HOSE – PICKER BAR LUBE (1000 FT)
OEM Part: N274964
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
27.2 – #74964-02
Description: HOSE – PICKER BAR LUBE (100 FT MIN. RANDOM CUT)
OEM Part: N274964
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
28.1 – #75063-1/2
Description: PICKER SPINDLE 1-1/8″ IMPACT SOCKET 1/2″ DRIVE, HARDENED, REDUCED WEIGHT, LINED WITH PLASTIC TO PROTECT BARBS
OEM Part: N275063
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
28.2 – #75063-3/8 a
Description: PICKER SPINDLE 1-1/8″ IMPACT SOCKET 3/8″ DRIVE, HARDENED, REDUCED WEIGHT, LINED WITH PLASTIC TO PROTECT BARBS
OEM Part: N275063
Section: Picking Unit System
John Deere 9900-9920, 9940 Picker Bar and Spindle Assembly
