CASE /IH FRONT FAN ASSEMBLY, 1822-2555 (S.N.499)

Shop by Image


Case IH harvester replacement parts are critical to getting the job done when parts on the cotton- harvesting machine fail. The Case IH front fan assembly is a component of the air system. The equipment models range from 1822-2555 (S.N.499).

It is hectic when parts malfunction, but there is relief available for the farmers when getting aftermarket harvester parts. It is not always necessary to get every component of an assembly for replacement. Another option is to get only the worn or broken pieces needing replacement and repair. Either way it saves time and money and gets the farmer back up and running, with little idle time waiting for parts, when you can get them when you need them.

Learn More

The air system keeps everything flowing smoothly so the picker can effectively get the cotton in the basket. Sometimes cotton fragments or other debris can clog up the air system, especially if the front fan assembly is not operating as it should. It doesn’t take a big piece to malfunction for the entire operation to stop.

A maintenance checklist for the cotton-picking machine should be performed before, during, and after the harvest season. Some more maintenance tips are to clean and inspect all parts at the end of the work day. Make sure lint is removed from the fins on the fan blades. Excess lint can cause the blade to be out of balance, breaking welds, causing premature wear, and tearing sheet metal. It is best to replace all worn parts before they break once detrimental wear is noticed. All it takes is one small part of an assembly to stop the machine from working.

Look for cracks, obstructed airflow, and any vibrations that are out of the ordinary. Parts used on a regular routine will wear down over time and break. The aftermarket parts give another option to the farmers, reducing downtime which would cost them more money in the long run.

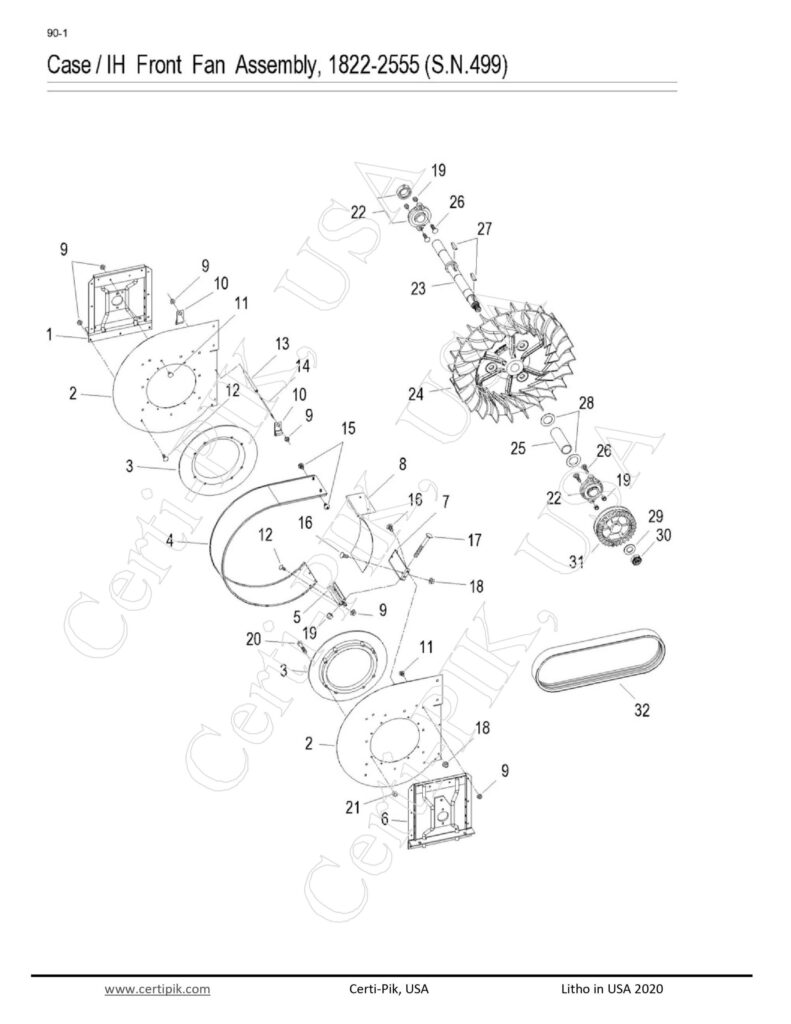

Case IH parts for the front fan assembly 1822-2555 (S.N.499) are shown here with all 32 parts and three kits.

The Parts of the Case IH Front Fan Assembly 1822-2555 (S.N.499)

  • Bearing Side Support (1/ Front Fan 2/ Rear Fan)
  • New Style Fan Side Panel Larger Transition Notch
  • Plastic Baffle or Orifice
  • Wrap Around Housing Cover
  • Housing Cover Tension Bracket
  • Side Support – Drive Side (1/ Front Fan)
  • Under Shroud Tension Bracket
  • Under Shroud Housing Cover
  • Cable Clip Clasp
  • Housing Spacer Pipe
  • Stud
  • Front Bearing with Housing and Locking Collar (2/ Front Fan 1/ Rear Fan)
  • Front Fan Shaft
  • Fan Blade
  • Shaft Spacer
  • 5/16 x 2-1/8 Woodruff Key
  • Fan Pulley
  • 46-13/16 Length (2 Band) Middle Fan Rotor Belt
  • 3 Band Fan Rotor Front Belt
  • Front Fan Kit (All Parts Not Assembled) Includes Bolt Kit #08200 and Parts 1-31
  • All Parts Assembled Front Fan Kit
  • Complete Bolt Kit for Front Case IH Fan Kit 1822-2555

Nuts, Bolts, and Washers for Case IH Front Fan Assembly 1822-2555 (S.N.499)

  • 1/4 Serr Hex Flange Nut
  • 1/4 x 1/2″ Carriage Bolt
  • 1/4 x 3/4″ Carriage Bolt
  • 8-18 x 3/8″ Self Tap Screw
  • 5/16 x 3/4″ Carriage Bolt
  • 3/8 x 3″ Carriage Bolt
  • 5/16 Serr Hex Flange Nut
  • 3/8 Nylon Lock Nut
  • 5/16 x 1-3/4″ Hex Head Bolt
  • 5/16 Center Lock Nut
  • 3/8 x 1-1/2″ Carriage Bolt
  • 1-13/32 x 2-1/4 x 1/16 Washer
  • 1.75 x .937 x .13 HDN Washer
  • 7/8 Nylon Lock Nut



How Certi-Pik, USA Helps the Dealers

The local dealers are also vital to keeping the farmers’ harvesting techniques up and running. Dealers can contact the warehouse and order the parts needed to keep their shelves stocked. When something breaks, and the farmers need the parts, they are satisfied when they know the parts are available and in stock.

Farmers are comfortable going through the dealers they know and trust. It is essential to keep them happy by having the parts most likely to wear down or malfunction handy. When supply and demand take effect, it is good to know when supplies are low or run out, and the warehouse can send the shipments out immediately.

Ordering from Certi-Pik, USA

Farmers and Dealers can access Certi-Pik Customer Service online or by phone to order aftermarket parts for the Case IH Front Fan Assembly 1822-2555 (S.N.499). The shelves are stocked with the parts and ready for the same-day shipment. If it is too late in the day for the shipment to go out, the parts will in most cases go out on the next shipping day. Contact Certi-Pik, USA, and we will send the parts out immediately to the dealer or directly to the farmer.

Air System

1 – #60120C3

Description: SIDE SUPPORT – BEARING ( 1/FRONT FAN, 2/REAR FAN )
OEM Part: 1260120C3
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

2 – #60067C2

Description: FAN SIDE PANEL – NEW STYLE – LARGER TRANSITION NOTCH
OEM Part: 1260067C2
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

3 – #07515C1

Description: BAFFLE – PLASTIC BAFFLE OR ORIFICE
OEM Part: 207515C1
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
21533c1 (resized Corrected)

4 – #21533C1

Description: WRAP AROUND – HOUSING COVER
OEM Part: 221533C1
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

5 – #04414C1

Description: BRACKET – HOUSING COVER TENSION BRACKET
OEM Part: 204414C1
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

6 – #38329C1

Description: SIDE SUPPORT – IH FRONT FAN – DRIVE SIDE ( 1/FRONT FAN )
OEM Part: 1338329C1
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

7 – #04415C1

Description: BRACKET – UNDER SHROUD TENSION BRACKET
OEM Part: 204415C1
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

8 – #04416C1

Description: UNDER SHROUD – HOUSING COVER
OEM Part: 204416C1
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

9 – #10217P

Description: NUT – 1/4 – SERR HEX FLANGE
OEM Part: N10217
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

10 – #62120R1P

Description: CLASP – CABLE CLIP
OEM Part: 362120R1
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

11 – #0043448P

Description: BOLT – 1/4 X 1/2″ CARRIAGE
OEM Part: 434-48
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

12 – #0434412P

Description: BOLT – 1/4 X 3/4″ CARRIAGE
OEM Part: 434-412
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

13 – #15020C1

Description: PIPE – HOUSING SPACER
OEM Part: 215020C1
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
015709c1

14 – #15709C1

Description: STUD
OEM Part: 215709C1
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

15 – #2601346P

Description: SCREW – 8-18 X 3/8″ SELF-TAP
OEM Part: 260-1346
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

16 – #01540P

Description: BOLT – 5/16 X 3/4″ CARRIAGE
OEM Part: 434-512
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

17 – #01565P

Description: BOLT – 3/8 X 3″ CARRIAGE
OEM Part: 433-648
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

18 – #10213P

Description: NUT – 5/16 – SERR HEX FLANGE
OEM Part: 425-105
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

19 – #11234P

Description: NUT – 3/8 – NYLON LOCK
OEM Part: 425-106
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

20 – #0413528P

Description: BOLT – 5/16 X 1-3/4″ HEX HEAD
OEM Part: 413-528
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

21 – #1311215P

Description: NUT – 5/16 – CENTER LOCK
OEM Part: 131-1215
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

22 – #60257C1P

Description: FRONT BEARING – INCLUDES HOUSING AND LOCKING COLLAR ( 2/FRONT FAN, 1/ REAR FAN )
OEM Part: 1260257C1
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

23 – #60070C3

Description: SHAFT – FRONT FAN
OEM Part: 1260070C3
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

24 – #60010C1

Description: FAN BLADE
OEM Part: 1260010C1
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

25 – #60073C1

Description: SHAFT SPACER
OEM Part: 1260073C1
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

26 – #01480P

Description: BOLT – 3/8 X 1-1/2″ CARRIAGE
OEM Part: 434-624
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

27 – #0118001P

Description: KEY – 5/16 X 2-1/8WOODRUFF
OEM Part: 118001
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

28 – #9581214P

Description: WASHER – 1-13/32 X 2-1/4 X 1/16
OEM Part: 495-81214
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

29 – #9611094P

Description: WASHER – 1.75 X .937 X .13 HDN
OEM Part: 496-11094
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

30 – #43386R1P

Description: NUT – 7/8 – NYLON LOCK
OEM Part: 543386R1
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

31 – #38322C1

Description: PULLEY – FAN (1844-635)
OEM Part: 1338322C1
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

32.1 – #B60258C2

Description: BELT – FAN ROTOR, MIDDLE – 1822, 1844, 2022, 2044 – (2 Band) Length 46-13/16
OEM Part: 1260258C2
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

32.2 – #B38328C1

Description: BELT – FAN ROTOR, FRONT – 1844 (S/N JJC002462 & above), 2044, 2055, 2155, 2555, CPX420, CPX420 Tier III, CPX610, CPX620, 625, 635-REAR – (3 Band)
OEM Part: 1338328C1
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
45030c1

KIT.1 – #45030C1

Description: FRONT FAN KIT – ALL PARTS UNASSEMBLED, INCLUDES # 08200 BOLT KIT, INCLUDES ITEMS #1-#31)
OEM Part: 1345030C1
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

KIT.2 – #45030C1A

Description: FRONT FAN KIT – ALL PARTS ASSEMBLED
OEM Part: 1345030C1
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
Air System

KIT.3 – #08200

Description: BOLT KIT – COMPLETE FOR FRONT CASE/IH FAN KIT, 1822-2555
OEM Part: 8200
Section: Air System
Case /IH Front Fan Assembly, 1822-2555 (S.N.499)
