12.1 – John Deere Pro 16 Front Door Support #74660

Water System

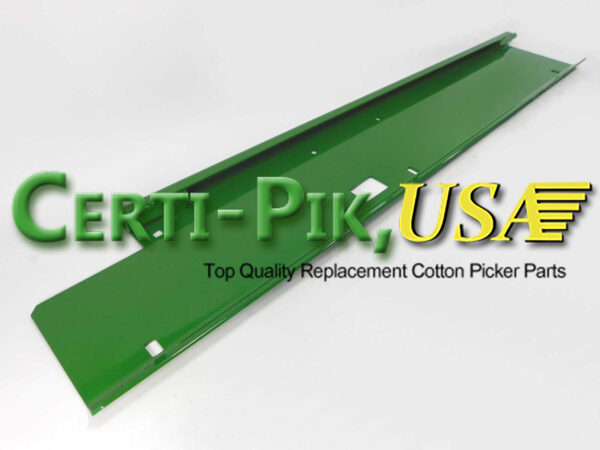

Description: SUPPORT – PRO 16 FRONT DOOR (9976-CP770)
Made to Fit: John Deere Moistener Column – Water System
Model Compatibility: 9976-CP770
Certi-Pik Part #: 74660
OEM Part: AN274660
Section: Water System
Add to cart to request a quote, or call 712-373-2607 to verify fitment before payment.
SKU: 85f917cbb148 Categories: , , , , Tag:

Description

Exploded parts diagram of John Deere cotton picker moistener column water system showing labeled components 1–63
John Deere Moistener Column Water System Assembly Diagram

Download PDF




More Made to fit John Deere Moistener Column Parts for this Assembly
